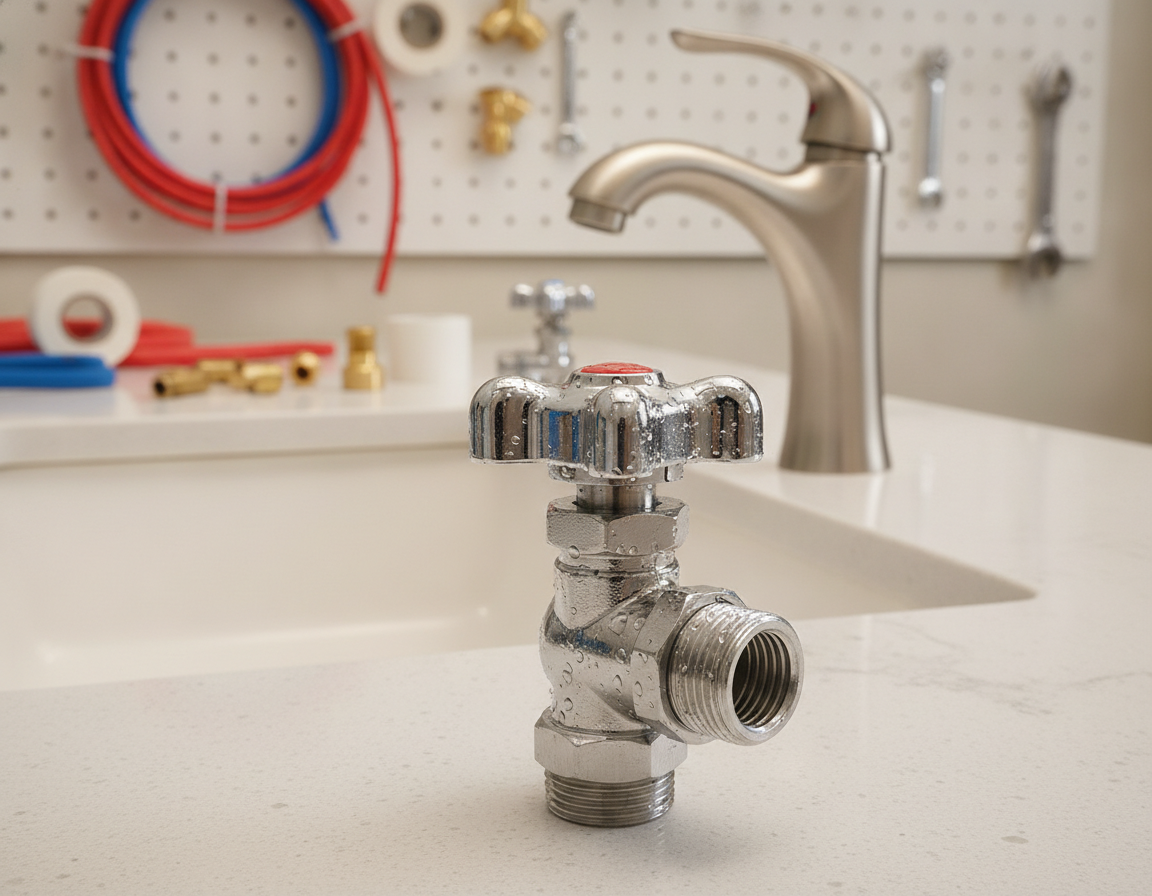

A low-profile angle stop is an L-shaped valve installed where the supply line serves a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means maintenance jobs can be completed more easily.
Angle Stop
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. These are quicker to operate and tend to last longer. When an angle stop becomes hard to turn, replacement can prevent water-damage risk and make future service easier.
Main Takeaways
- A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn models are commonly preferred because they shut off faster.
- Any valve that sticks should be replaced before it causes larger water problems.
What An Angle Stop Is And Why It Matters
An angle stop is a small shutoff valve placed where the supply line connects to a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance localized.
Simple Definition And Explanation
An angle stop is a 90-degree valve placed at the fixture supply. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.
Where Home Angle Stops Are Usually Installed
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.
Why Angle Stops Help Homeowners
A major advantage of an Angle Valve For Sink is fixture isolation. A working Plumbing Angle Stop lets you shut off one fixture to replace a faucet or repair a leak. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.
Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
Difference Between Angle Stop And Angle Seat Valve
Household angle stops serve low-pressure potable water lines. They are designed for sinks, toilets, and common appliances. The industrial Angle Seat Valve is different. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.
Angle Stop Types And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Angle Stop Materials
Brass is the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
How Angle Stops Operate
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They offer easy operation and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They can offer finer flow control, but older units are more likely to leak.
Angle Stop Connection Types
Compression Angle Stop fittings join with a nut and ferrule and suit copper or CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.
Extra Angle Stop Features
Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Select a model that matches your pipe type and service expectations to avoid premature failure.
Understanding Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. Choosing the right size and style affects performance, ease of service, and compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Common Home Placement
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.
Lead-Free Code Notes For Drinking Water
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors must follow local codes and provide test certifications and warranties to support compliance.
Modern Trends And Recommended Standards
Modern Angle Stops commonly feature quarter-turn ball-style operation. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.
Practical Checklist For Selection
- Check Valve Markings before buying so the inlet type and outlet size match your system.
- Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
- Use a Lead-Free Angle Stop whenever the valve is installed on a potable-water line.
- For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.
How To Install And Replace Angle Stops Safely
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. The main usually needs to be closed only when the existing stop is unable to close fully. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth for copper, PTFE tape for threaded joints, a marker, and a flashlight are also useful. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.
Installation Checklist:
- Adjustable wrench plus backup wrench
- Clean-cutting and deburring tools
- PTFE tape plus marking pen
- Push-fit valve and required stiffener
- Replacement ferrules, compression nuts, penetrating oil, and towels
Follow specific steps for each connection type. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth, then push the valve straight onto the pipe until it reaches the mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop joints require careful handling. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.
For a FIP angle stop or other threaded connection, apply three to four wraps of PTFE tape to the male threads and start the valve by hand to prevent cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Several common mistakes can cause leaks or early valve failure. Over-tightening compression nuts can deform ferrules and cause leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Common Angle Stop Issues And Fast Fixes
Homeowners often encounter small leaks and frozen handles with angle stops. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.
Stem Or Handle Leaks
Stem seepage in older multi-turn valves often comes from a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Stuck Valves
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating product such as WD-40 for about ten minutes may help. A gentle back-and-forth motion may help break the handle free. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Leaks At Compression Joints
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To repair it, loosen the compression nut, reseat the ferrule, and clean the pipe surface with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When Replacement Makes Sense
Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.
Simple Troubleshooting Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- When valves repeatedly freeze, leak, or stick, upgrade to quarter-turn stops.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Fixing leaks, stuck valves, and weeping joints promptly helps prevent bigger repairs and supports Angle Stop Reliability.
Conclusion
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Choosing the right material, operation style, and connection type makes repairs easier. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.
If installation is uncertain, consulting a licensed plumber is wise. A plumber can ensure code compliance and provide warranty-backed work. This protects fixtures and simplifies maintenance. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
